LARX Heating Mat set for self-installation

The LARX Heating Mat LSDTS heating mat is a proven ready-to-use solution for underfloor heating of rooms with tiles.

LARX Heating Mat

Electric underfloor heating


Directly under ceramic tiles
160 W/m², 230 V
LARX Heating Mat

LARX Heating Mat set for self-installation

Key features of the kit

  • for installation directly under ceramic tiles
  • DIY installation (just plug in the thermostat)
  • proven heating mat technology in a modern package
  • advanced construction technology, self-adhesive layer for easy attachment
  • resistance to moisture and thermal stress
  • very thin, yet durable for maximum durability
  • integrated earthing conductor for highest safety
  • suitable for bathrooms and other rooms with tiles
  • 10 years warranty

Installation and use of LARX Heating Mat

Featuring a two-core construction, the 3m connection cable includes both conductors and earth - it has a protective braid. The LARX Heating Mat is installed directly under the floor tiles. The base is a clean penetrated substrate. The heating mat is self-adhesive for easy installation. The flexible adhesive is applied directly to the mat and the tiles are laid. Installation is simple and can be done by any customer or floor tiler. After the carrier fabric has been cut, the mat can be folded in another direction, so that the whole room can be covered with one strip. The set contains one heating mat of a given size. The individual strips can be freely parallel connected up to a total output of 2,300 W for a 10 A circuit breaker and 1.5 mm² wiring.

Application directly under the pavement

LARX Heating System PE Film Anhydrite/concrete Anhydrite/concrete
  • 1Ceramic tiles
  • 2Tile adhesive
  • 3LARX Heating Mat
  • 4Penetrated clean substrate

Benefits of LARX Heating Mat

  • Energy saving
  • Ease of installation and technology
  • Low acquisition costs
  • Fast realization process
  • Maintenance-free comfortable system
  • Use as a main and additional heat source
Control system
Price excl. VAT

59 £

109 £

LARX Heating Mat
Price excl. VAT

49 £

58 £

60 £

83 £

90 £

100 £

124 £

120 £

166 £

216 £

Shipping and services
Price excl. VAT

15 £

Delivery address

After sending the order, an advance invoice will be sent to you immediately. Once paid, the order will be sent to your address within 2  working days. Please read our terms and conditions carefully before ordering.

Material: 0 £ excl. VAT
Transport: 0 £ excl. VAT
Total price: 0 £ excl. VAT

The last shipping day of the week is Thursday. To guarantee delivery by Friday, invoices must be paid by 9.00 a.m. on Thursday.

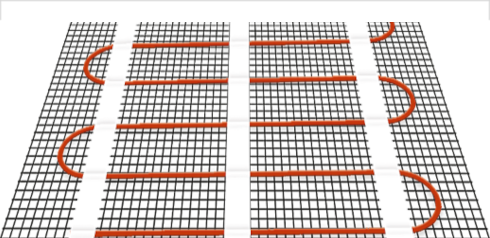

Dimensional variants of LARX Heating Mat

Width: 50 cm

Width of LARX Carbon Kit

Length of LARX Heating Mat

2 m 3 m 4 m 5 m 6 m 7 m 8 m 10 m 12 m 16 m

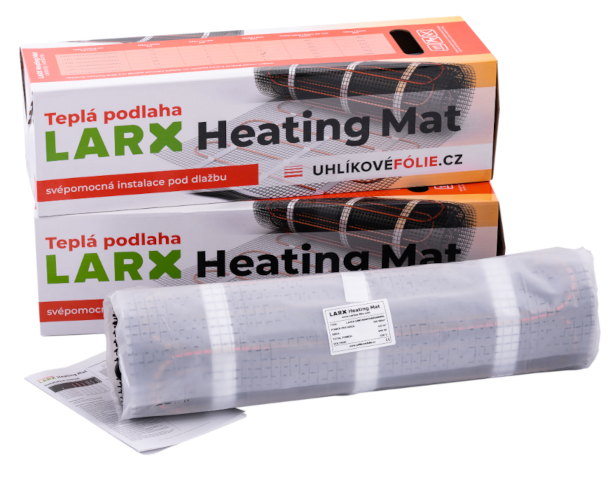

The kit package contains

  • LARX Heating Mat LSDTS
  • Connecting wires (L, N) 3m long
  • Protector for connecting wires
Package contents

Technical parameters LARX Heating Mat

  • Power supply: 230 V @ 50 Hz
  • Power consumption: 160 W/m²
  • Mat thickness: 4 mm
  • Film width: 0.5 m
  • Heating mat length: 2 to 16 m
  • Efficiency: 99%
  • Self-adhesive layer for easy installation
  • Length of cables: 3 m



LARX carbon heating Films are carefully tested

It meets strict Czech and European standards and safety requirements for a healthy indoor environment. It has all necessary certifications for the Czech Republic and other European countries.


Declaration of Conformity

Declaration of the Korean manufacturer on the compliance of LARX carbon heating Film with all standards, including IP protection.
More in our blog post.

LARX CARBON-FILM.COM Certificate for the wire

LARX connecting wires

They meet the strictest Czech and European standards and requirements for safety. The above certification applies for the Czech Republic and other European countries. It is the highest quality cable of its kind due to the increased double insulation and tinned copper.
